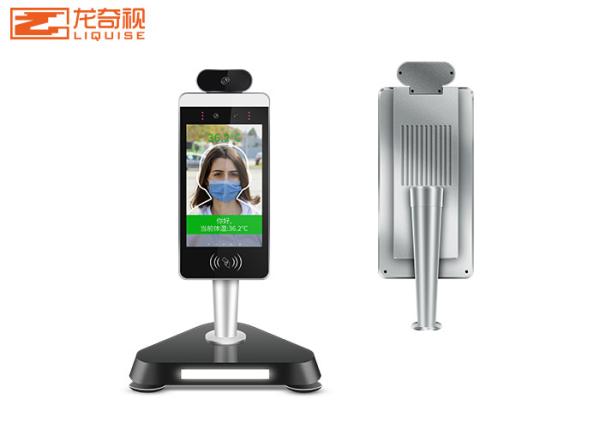

Face Recognition Temperature Measurement Intelligent Automatic Infrared Detection Attendance Machine
Product Features
1. Help epidemic prevention and control, face recognition and entrance guard attendance, face attendance, mask recognition, temperature detection, intelligent check-in, attendance report. Avoid cross infection, binocular detection, and pass quickly, avoiding the risk of cross cancellation of fingerprint card. Optional disinfection rack, spray hand sanitizer, loading disinfectant, palm facing the nozzle, automatic detection of machine, disinfectant spray in the form of spray.
2. Application scenarios and diversified products are applied flexibly in many scenarios. Transportation, government agencies, offices, gymnasium, business attendance, visitor registration, etc. Dynamic face, easy to recognize, product camera can quickly capture face information, can achieve second speed. Various recognition functions, face or card swipe, etc., turn on stranger visit records. No matter whether there is information collection or not, the traffic records will be recorded.

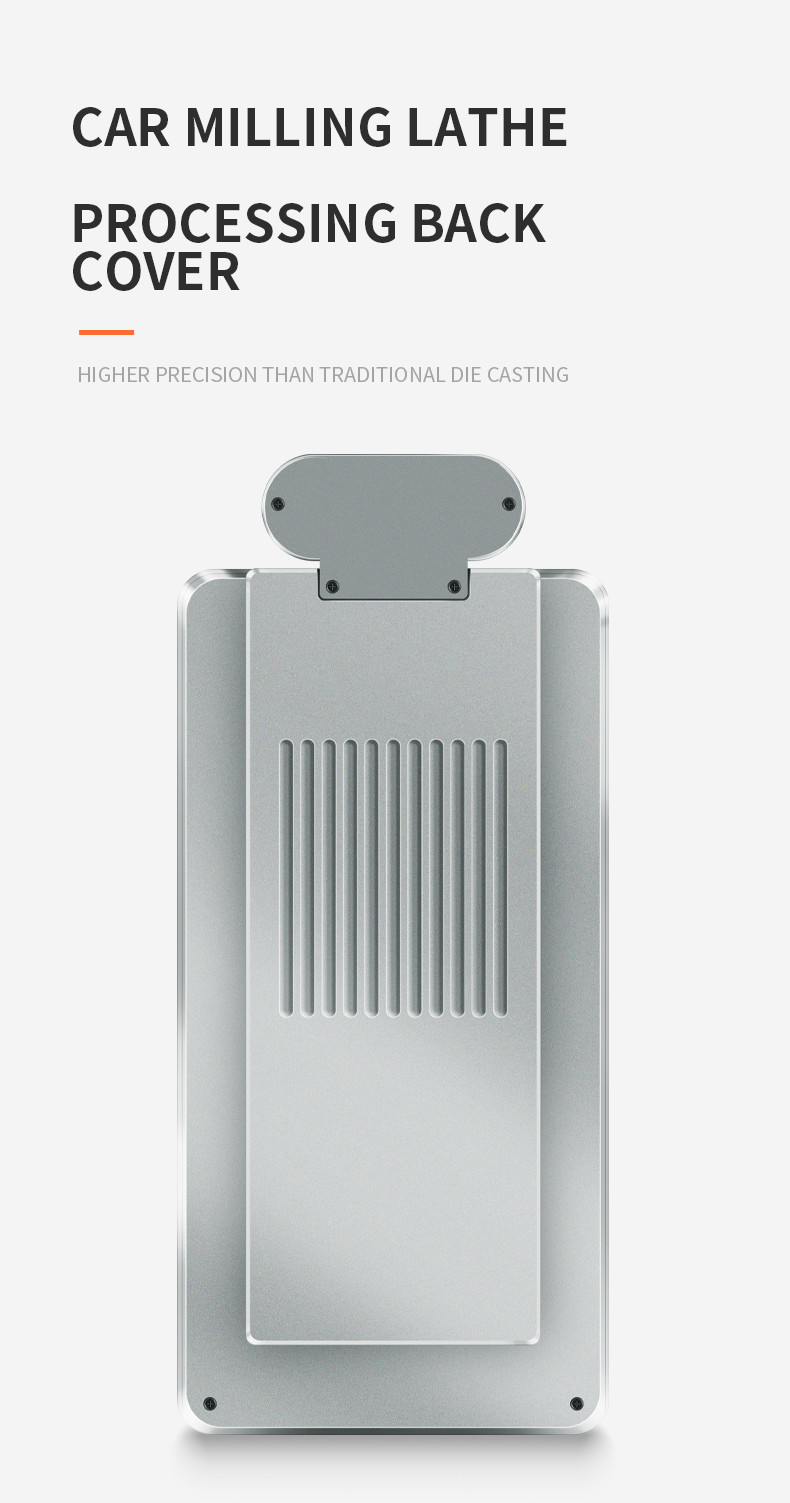

3. Product parameters: 8 "full height clear screen, dual view HD camera. Android system, all aluminum shell, fast identification, second door opening, equipped with a 100m network port, supports multi language, IP54 protection level, supports indoor and external scenes, recommends gate machine installation, with channel gate, wall mounted installation and floor mounted installation. It supports face recognition, backscan remote door opening, and supports the taking photos of strangers.
Applicable to office areas, hotels, office buildings, schools, shopping malls, shops, communities, public services and management projects that need to use face access control places.
Technical parameter:
| Screen | 8 inch |
| Overall size | Long 284* width 140*high29mm |
| processor | High performance 32 bit 4 core ARM chip |
| Storage memory | 16GB |
| Measurement mode | Infrared thermal imaging temperature measurement |
| Measuring distance | 0.3m~1m(suggest 0.5m) |
| communication method | TTL |
| Temperature measurement accuracy | ±0.2℃~±0.4℃ |
| Operating temperature | -20~65℃ for |
| Storage temperature | -40~65℃ for |
| Power supply | 3-5V |
| Electric current | 2ma |
| Baud rate | 9600/115200 |
| Default automatic output frequency | 14Hz |
| Wavelength range | 8~14µm |
| Temperature output | parallel output at any time |
| Temperature correction | Manual and automatic calibration |
| Alarm threshold | Adjustable |
| Wiegen interface | Support weigen 26 weigen34 |
| Other interface | 232 TTL WIFI RJ45 |
| Type | Can be wall-mounted, desktop, vertical, gate |
camera | 200w:USBConnector,Binocular wide dynamic,Glare |
| Aperture 2.8,Focal length 1.6mm,Angle of view 130°,TV distortion<-5%,Photosensitive area size1/5-inch |
| Pixel:meet customer’s need,≥2 million pixels |
| Assembly angle: flat out |
| Image Sensor | 6mm Focal length,F2.4 Aperture |
| Fill light | LED:white light,RGBCamera fill light,SDK with control interface |
NIR:850nm Infrared LED light,IR Camera fill light source,SDK with control interface |
| Operating system | Android 6.0.1 or above |
| Input power | 12V2A |
| Backlight identification illuminance | <6000Lux |
| Effective identification distance | 0.5m-4m |
| working environment | Indoor,outdoor(With rainproof frame),10~90%(Non-condensing) |
| Operating temperature | -20℃~+55℃ |
| Card reading speed | 0.2S |
| Matching |
| ID card reader | Support second-generation ID card identification function, SDK contains control interface |
| LTE Function | Support 4G full Netcom Internet access function |
